Crystic® Tooling Resin
Skin Coat VE679PA

Product info

Crystic® VE679 PA (Thix HV)

Highly Thixotropic Vinyl Ester Skincoat Resin for Superior Surface Finish

Crystic® VE679 PA (Thix HV) is a pre-accelerated, highly thixotropic, DCPD-modified vinyl ester resin developed for hand lay-up and spray lamination where surface finish, blister resistance, and print-through control are critical.

Specifically formulated as a vinyl ester skincoat, VE679 PA (Thix HV) provides excellent cure in thin laminates and can be applied to vertical or complex surfaces without drainage. When used as a skincoat beneath structural laminates, it significantly improves surface quality and long-term durability, making it ideal for marine, tooling, and swimming pool applications.

Key Features & Benefits

Highly thixotropic formulation

Enables application on vertical and contoured surfaces without sag or resin drainage

Optimised for skincoat applications

Achieves reliable cure in thin laminates with excellent surface quality

Reduced fibre print-through

Produces smooth, durable cosmetic surfaces beneath structural laminates

Excellent blister resistance

Supports long-term performance in marine and water-exposed environments

Hand lay-up & spray compatible

Suitable for manual and spray lamination processes

Improves final part appearance

Enhances surface finish and reduces post-finishing work

Applications

Crystic® VE679 PA (Thix HV) is recommended for:

Marine skincoats
Hulls, decks, and marine mouldings requiring enhanced surface finish
Tooling applications
Cosmetic surface layers beneath structural laminates
Swimming pools & wet-area structures
Where blister resistance and surface quality are critical
Hand lay-up & spray lamination processes
Cosmetic laminate layers
Used prior to structural vinyl ester or polyester backing laminates

Resin Properties (Uncured)

Appearance: Red / Brown
Viscosity (Thixotropic):
- ~2.5 dPa·s (ICI Cone & Plate @ 25°C)
- ~2550 mPa·s (Brookfield Spindle 3, 5 rpm @ 25°C)
- ~800 mPa·s (Brookfield Spindle 3, 50 rpm @ 25°C)
Gel Time @ 25°C:
- ~25 minutes with 2.0% Butanox® M50
Storage Stability: Up to 6 months at ≤20°C

Mechanical & Thermal Properties (Cured)

(Post cure applied)

Barcol Hardness: ~35
Heat Deflection Temperature (HDT): ~94°C
Tensile Strength: ~52 MPa
Tensile Modulus: ~3.0 GPa
Elongation at Break: ~2.1%

Processing & Handling

Crystic® VE679 PA (Thix HV) is pre-accelerated and designed for cold curing. It requires only the addition of a medium-reactivity MEKP catalyst, such as Butanox® M50, at 1.2–2.0%.

Important: Catalyst and accelerator must never be mixed directly together.

Post curing is recommended to achieve optimum chemical, water, and heat resistance before placing parts into service.

Packaging & Availability

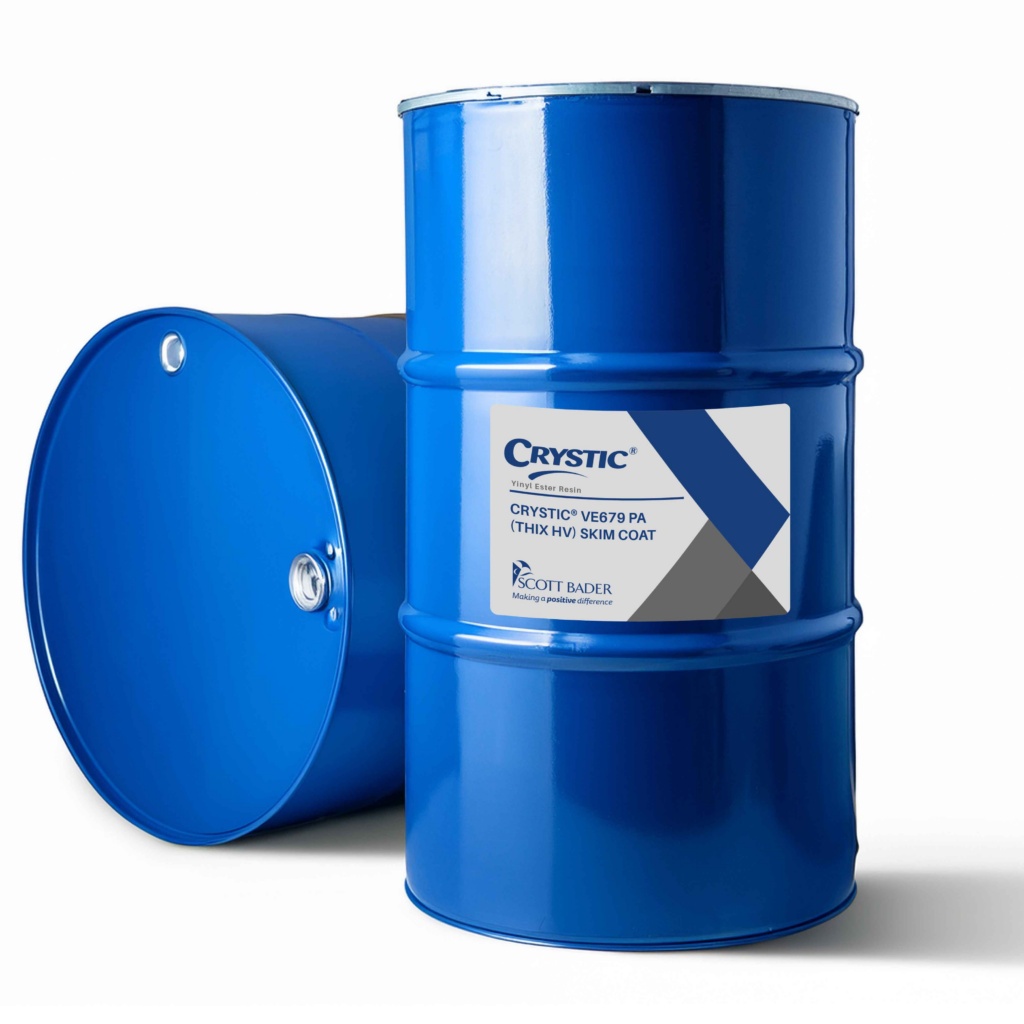

20 kg pail
200 kg metallic drums
Bulk supply available on request

Technical Data Sheet

Crystic® Vinyl Ester Skin Coat Resin VE679PA

ATL Technical Support
ATL Composites provides technical support, catalyst selection guidance, and processing advice to ensure Crystic® VE 671-03 PA is correctly specified and optimised for chemical, thermal, and structural performance.
