WEST SYSTEM 400 Fillers

Product info

WEST SYSTEM® Fillers

WEST SYSTEM® fillers enhance the versatility of the epoxy system by modifying the mixed resin’s consistency to suit a wide range of bonding, filling and fairing applications. Each filler is engineered with specific physical characteristics, and can be broadly classified into two categories: Adhesive (high-density) and Fairing & Filling (low-density).

High-density fillers produce strong, structural mixtures that cure to a hard, high-strength solid — ideal for bonding, hardware installation, filleting and applications where load-bearing performance is essential.
Low-density fillers create lightweight, easily sanded mixtures used for shaping, cosmetic filling and fairing, delivering smooth contours and a refined finish with minimal effort.

Common WEST SYSTEM® fillers include:

410 Microlight – ultralight fairing
411 Microsphere Blend – filleting and gap filling
413 Microfibre Blend – structural adhesive
417 Low Density Fairing Filler – general-purpose fairing

In select cases, ATL Composites also supplies alternative fillers to those listed in the WEST SYSTEM® User Manual to better suit specific customer requirements and manufacturing processes.

– Customise Performance. Control Every Surface.

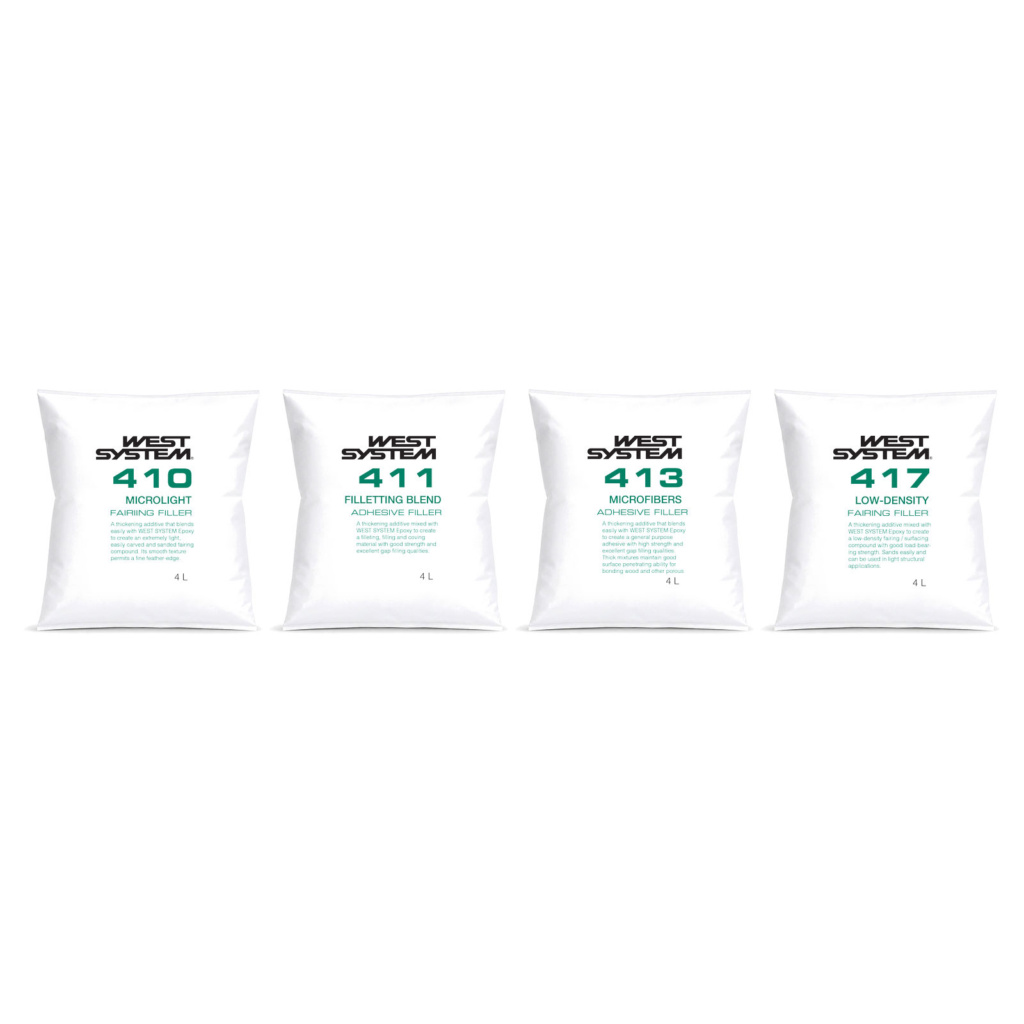

WEST SYSTEM 400 FILLERS

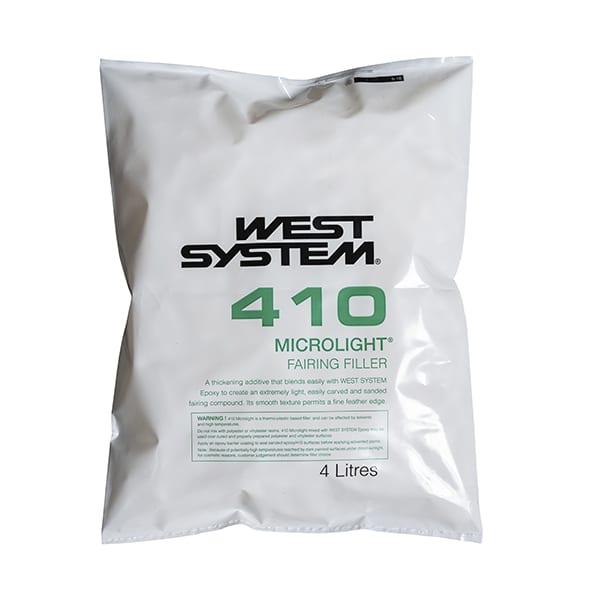

410 Microlight

410 Microlight is the ideal low-density filler for creating a light, easily-worked fairing compound especially suited for cosmetic or surface applications like shaping, filling or fairing. 410 Microlight mixes to a very smooth creamy texture that can be trowelled to a feather edge, and is less porous than other filling compounds.

Pack Size

4 Litre | 12 Litres | 20 Litres

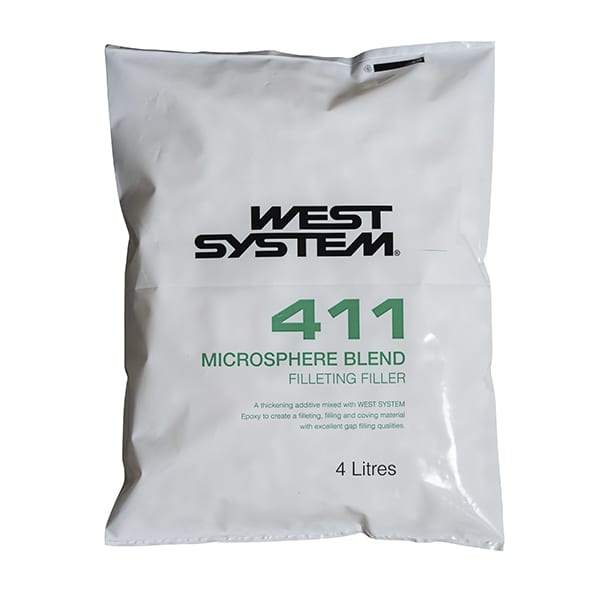

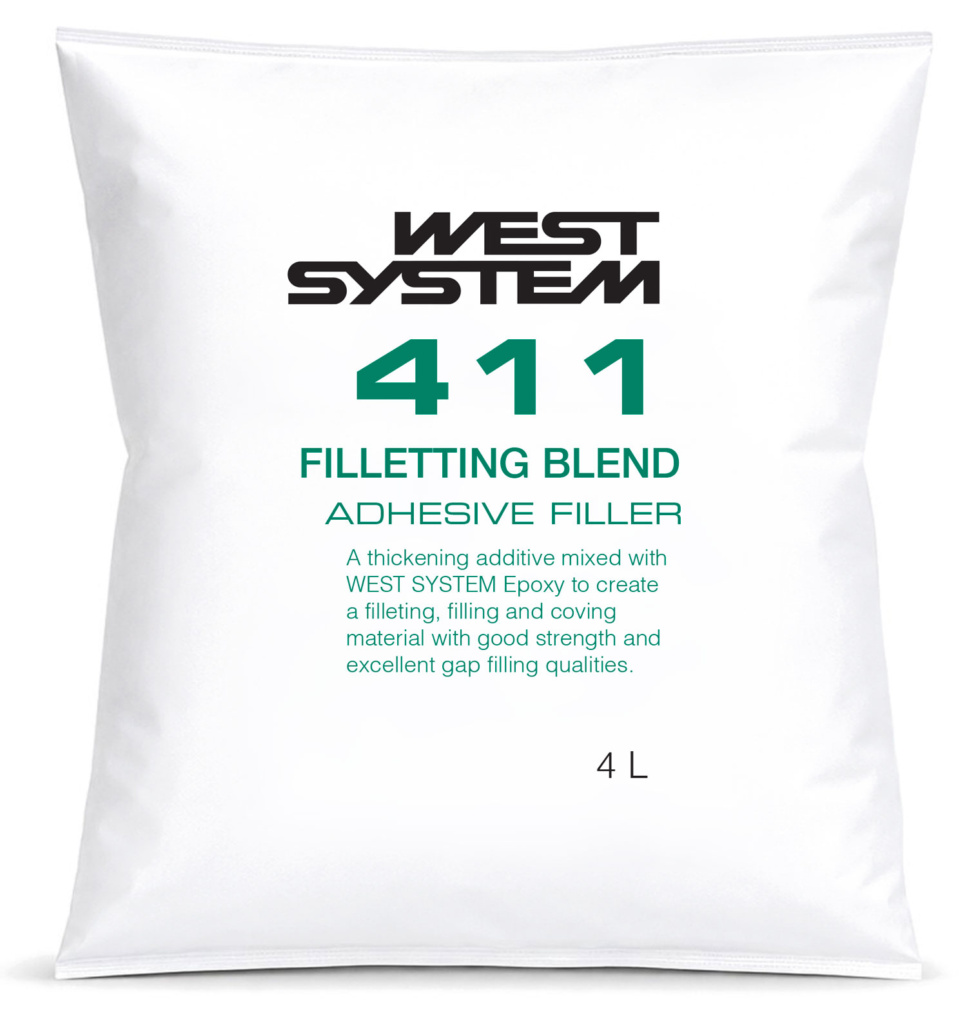

411 Microsphere Blend

411 Microsphere Blend is a low density filler which cures to a lightweight filling putty with excellent filleting characteristics. 411 Microsphere Blend is also used as a low density adhesive for edge gluing in strip plank construction.

Pack Size

4 Litre | 12 Litres | 20 Litres

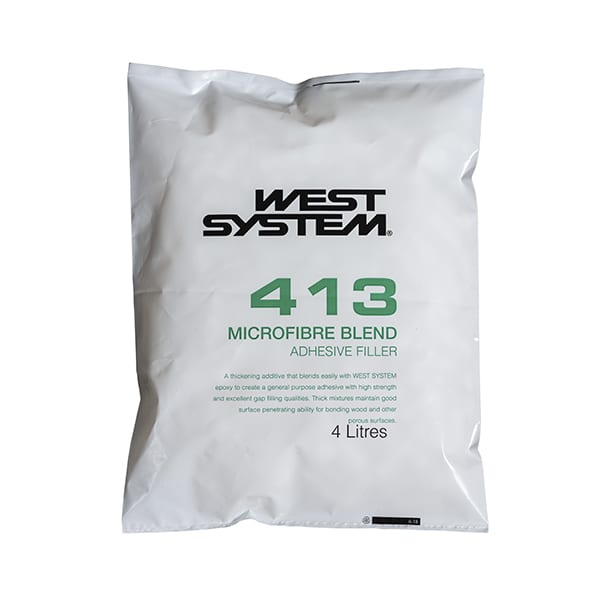

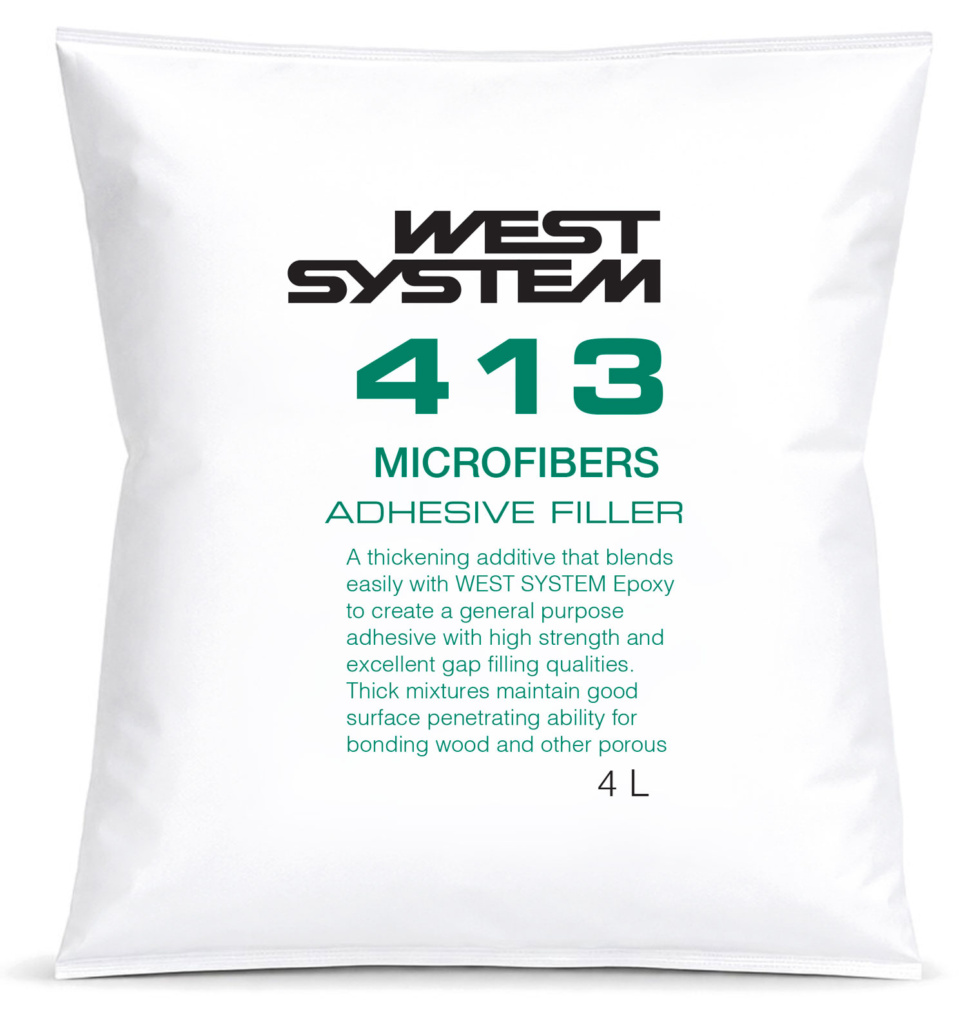

413 Microfibre Blend

413 Microfibre Blend is a high density filler used to create a multi-purpose, high strength adhesive used for structural applications like bonding, filleting and hardware bonding, while retaining excellent wetting and penetrating capabilities. As a blended filler, 413 Microfibre Blend, offers an added degree of thixotrophy and substantially improved spreading and working properties.

Pack Size

4 Litre | 12 Litres | 20 Litres

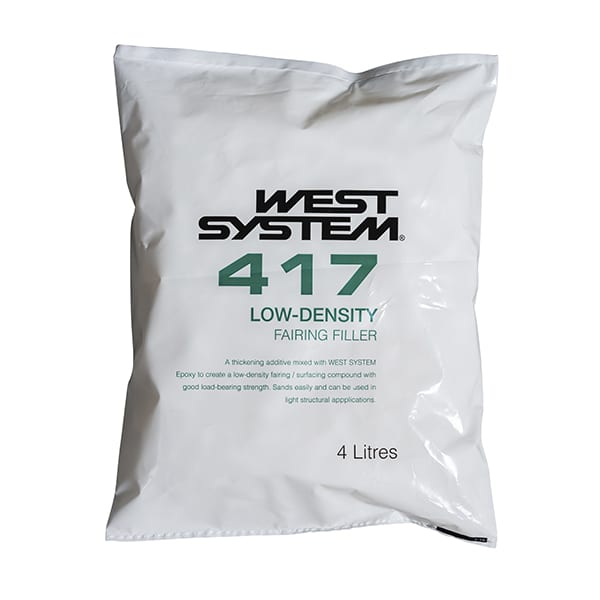

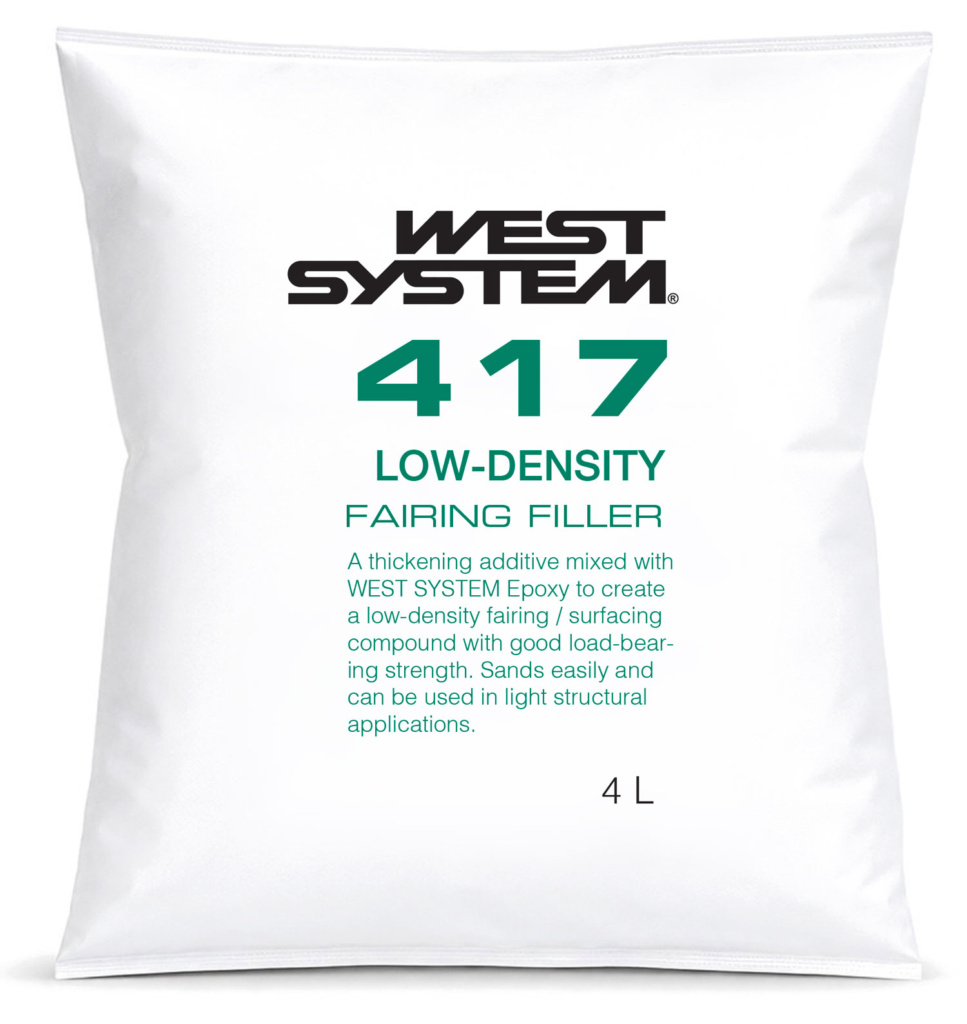

417 Low Density Filler

417 is a low density microballoon-based filler used as a thickening agent with epoxy fairing systems to make fairing putties that are easy to sand or carve. 417 has a reasonably strong strength to weight ratio, and is recommended as the preferred filler under dark coloured surfaces.

Pack Size

4 Litres

USA WEST SYSTEM® Fillers	Australian WEST SYSTEM® Fillers	Applications
403 Microfibres	413 Microfibre Blend	Structural bonding
404 High Density	413 Microfibre Blend	Hardware bonding
405 Filleting	411 Microsphere Blend	Filleting and edge gluing in strip planking
406 Colloidal Silica	413 Microfibre Blend	Structural bonding
407 Low Density Filler	417 Low Density Filler	Fairing under dark coloured paints
410 Microlight	410 Microlight	Fairing under light coloured paints

WEST SYSTEM 410 Microlight

WEST SYSTEM 413 Microfibre Blend

WEST SYSTEM 411 Microsphere Blend

WEST SYSTEM 417 Low Density Filler
