Vacuum Bagging Film
Vacuum bagging films form the sealed envelope required to maintain vacuum pressure across the laminate throughout processing. Film selection is determined by cure temperature, part size and geometry, elongation requirements and bag configuration to support reliable sealing, conformity and process control.
Airtech
L100 Big Blue
General Purpose Bag Film
A cost-effective, multi-layer polyolefin vacuum bagging film for resin infusion and wet lay-up applications where cure temperatures do not exceed 121°C (250°F).
Key Features
- Super-wide film reduces seaming time on large parts
- Fewer seams lower the risk of vacuum leaks and scrap
- Flexible and easy to handle in typical workshop conditions
- Economical option for low-temperature vacuum bagging
Application
Airtech
Wrightlon® 600V
General Purpose Bag Film
A high-performance nylon vacuum bagging film designed for elevated-temperature cures and light autoclave processing, maintaining softness and durability in demanding environments.
Key Features
- Suitable for oven and light autoclave cure cycles
- Good elongation combined with high strength
- Stays soft in low humidity compared to standard nylon films
- Designed for commercial applications requiring higher performance
Application
| Part | Description | Process Temp |
Thickness mm |
Width mm |
Length lm |
Form |
|---|---|---|---|---|---|---|
| 0BB10004 | L100 Big Blue: Multilayer Film | 121°C | 0.075 | 4000 | 170 | W Fold |
| 0BB10006 | L100 Big Blue: Multilayer Film | 121°C | 0.075 | 6000 | 110 | W Fold |
| 0BB10010 | L100 Big Blue: Multilayer Film | 121°C | 0.075 | 10000 | 67 | W Fold |
| 0BB10012 | L100 Big Blue: Multilayer Film | 121°C | 0.075 | 12000 | 56 | W Fold |
| 0WL60V15T | Wrightlon 600V Violet Film | 204°C | 0.050 | 1520 | 304 | Lay Flat Tube |
| 0WL60V304 | Wrightlon 600V Violet Film | 204°C | 0.050 | 3040 | 304 | Centre Fold Sheet |
Typical vacuum and infusion films form types

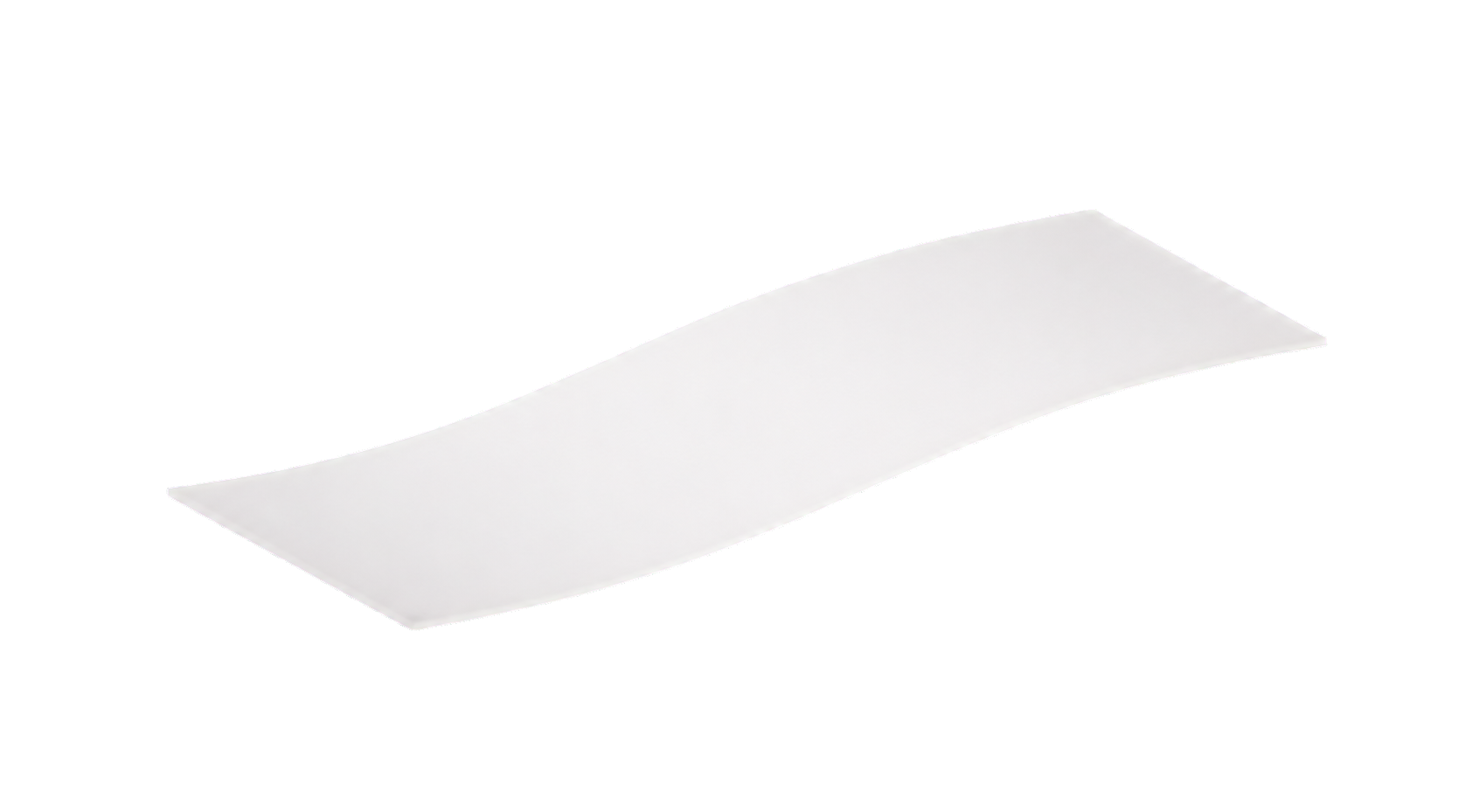

Sheet

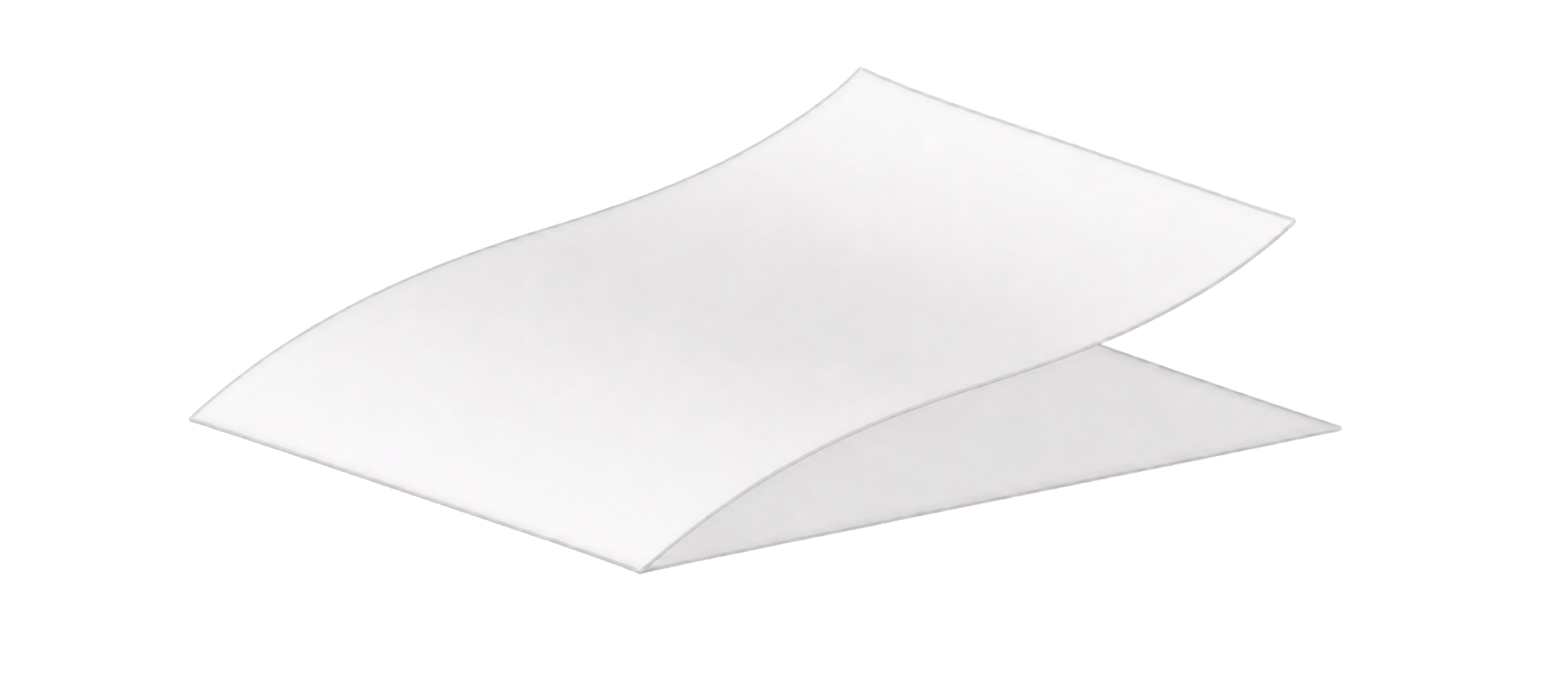

Centerfold

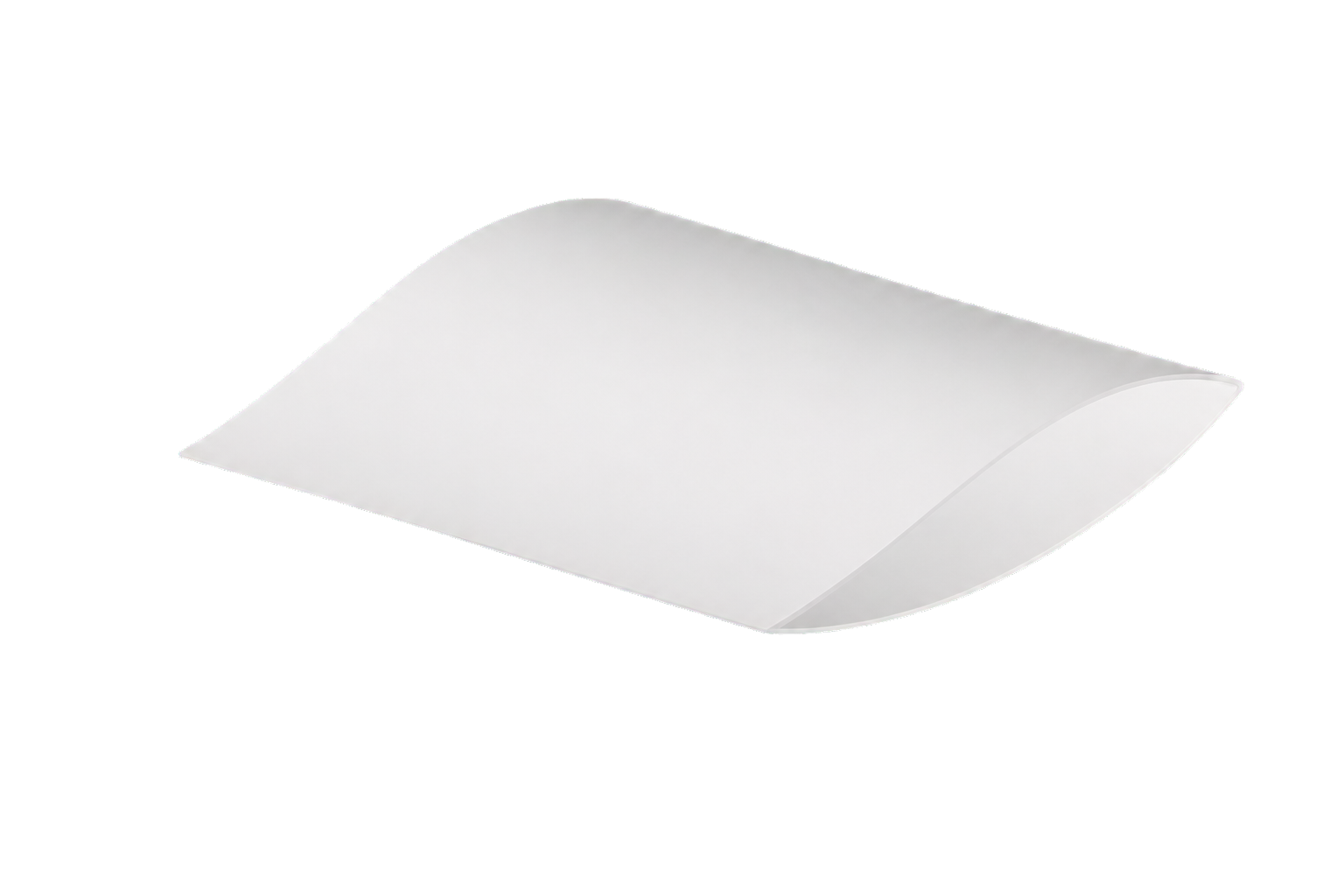

Lay Flat Tubing

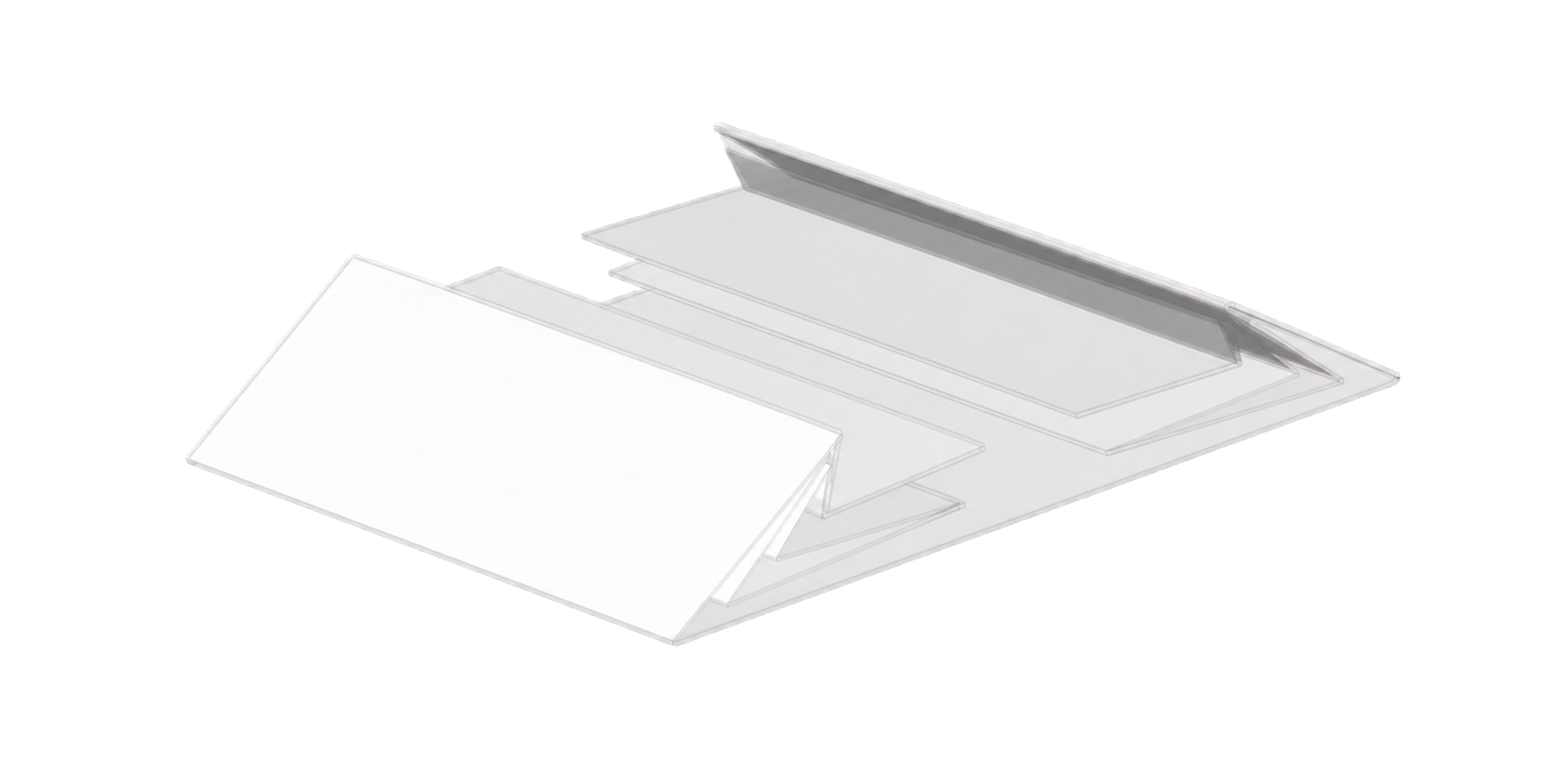

W Fold
Selecting the right bagging film
1. Process
Temperature
Select a film with a maximum service temperature comfortably above the expected cure or processing temperature.
2. Resin & Chemical
Compatibility
Confirm the film is compatible with the resin system, solvents and other processing materials being used.
3. Elongation and
Conformability
Complex moulds, deep draws and tight corners require a film with sufficient elongation to conform without bridging or excessive stress.
4. Film Width
and Format
Choose a width and fold format that minimises seams, reduces preparation time and provides enough material for pleats and movement under vacuum.
