Vacuum Equipment & Accessories

Product info

Vacuum Bagging Equipment & Accessories

ATL supplies a complete range of vacuum bagging equipment and accessories including vacuum gauges, breach kits, transducer kits, connectors and fittings. These components are engineered to deliver accurate vacuum control, efficient resin flow and reliable system performance. Suitable for workshop, production line and field environments, these accessories support safe, precise and repeatable composite processing across all ATL industry sectors.

Connectors, Fittings and Gauges

Connectors, fittings and gauges help assemble and monitor the infusion circuit. These components play an important role in maintaining system integrity, managing hose routing and checking vacuum performance.

Airtech

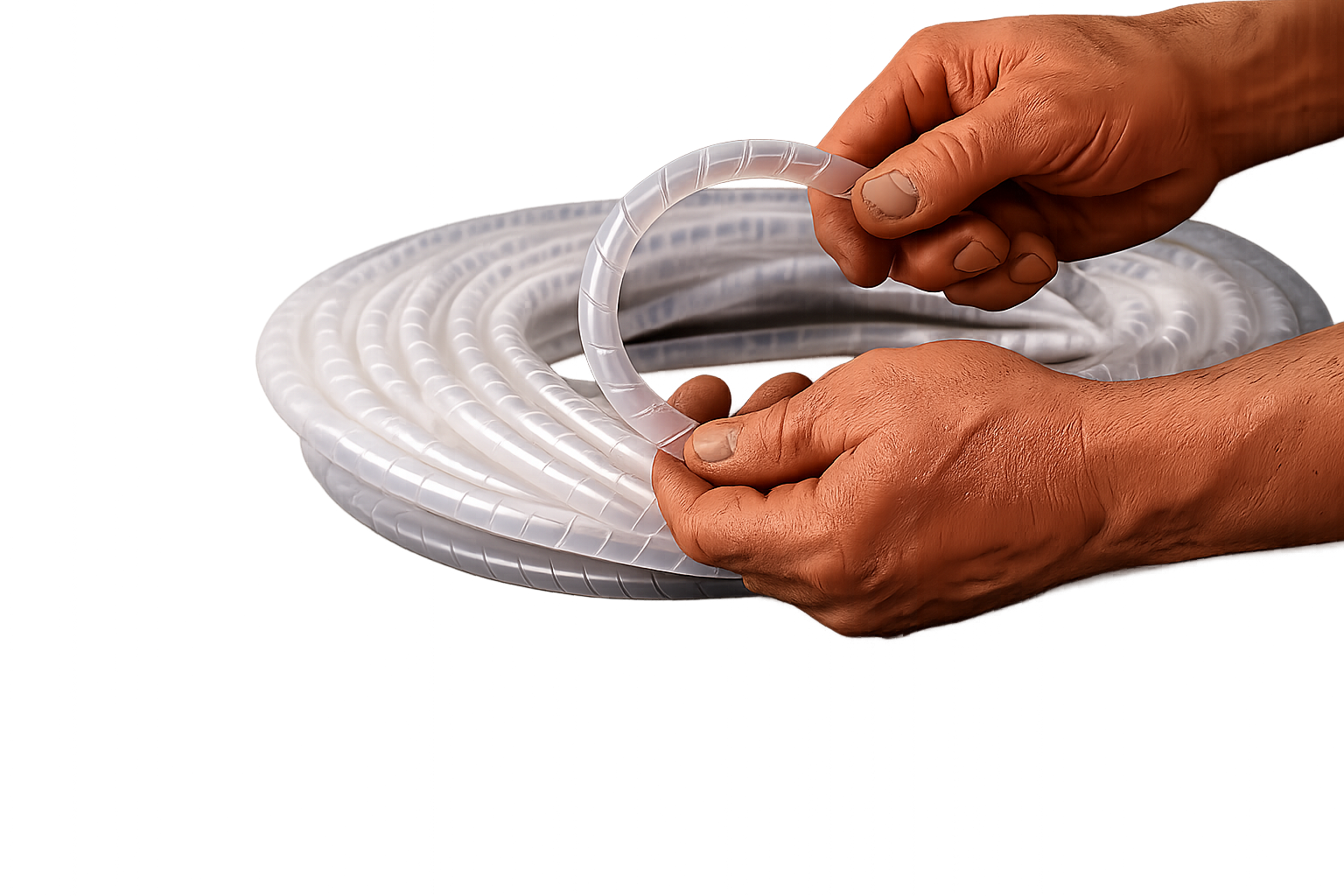

Tubing & Spiral Wrap

Polyethylene tubing is used to connect resin supply and vacuum equipment. Spiral wrap provides an open distribution pathway along the edge or surface of the laminate.

Part	Description	Process Temp	Outside Diameter	Inside Diameter	Length LM
0V804	Polyethylene Tubing	87°C	1/2″	3/8″	50
0V805	Polyethylene Tubing	87°C	5/8″	1/2″	50
0V806	Spiral Wrap	100°C	–	12 mm	20
0V807	Wrap	100°C	–	16 mm	20

Airtech

Infusion Connectors and Fittings

Infusion connectors and fittings create secure connection points for resin and vacuum lines, simplifying setup while supporting consistent flow and vacuum integrity.

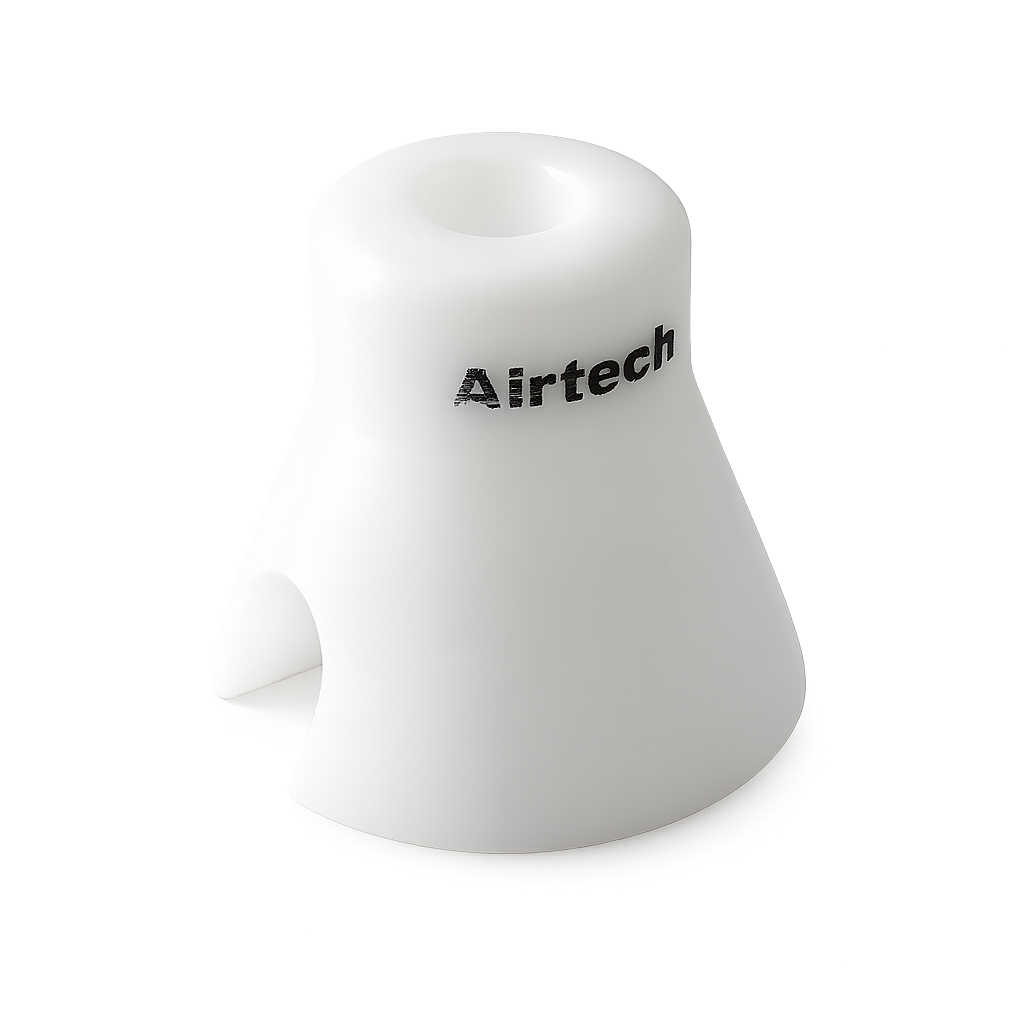

V815

Resin Infusion
Connector Fitting

Arch Base 1/2″

Arch base connector fitting with a 1/2″ hose barb for secure resin and vacuum line connections.

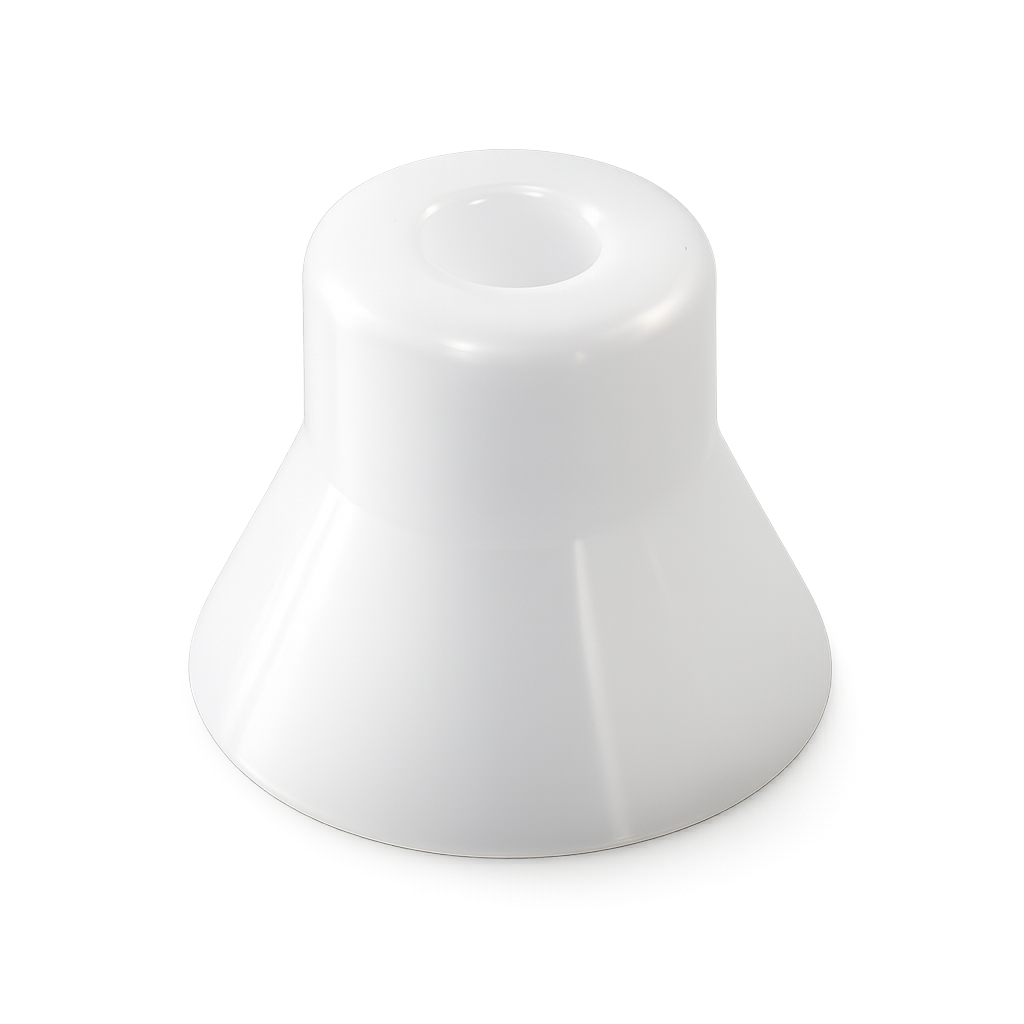

V815FLAT

Resin Infusion
Connector Fitting

Flat Base 3/8″

Flat base connector fitting designed for stable mounting on flat surfaces.

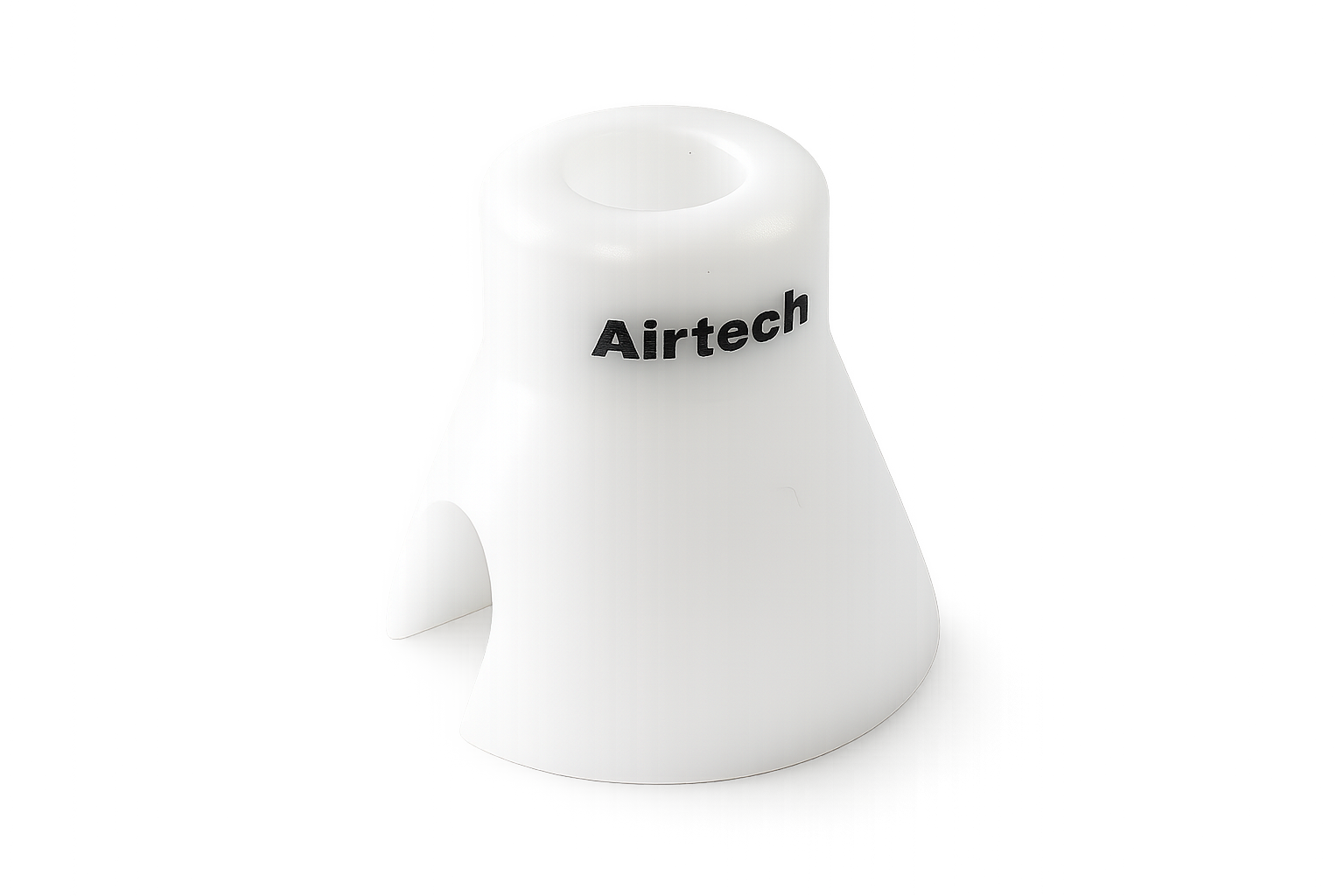

V816

Resin Infusion
Connector Fitting

Arch Base 5/8″

Arch base connector fitting with a 5/8″ hose barb for secure resin and vacuum line connections.

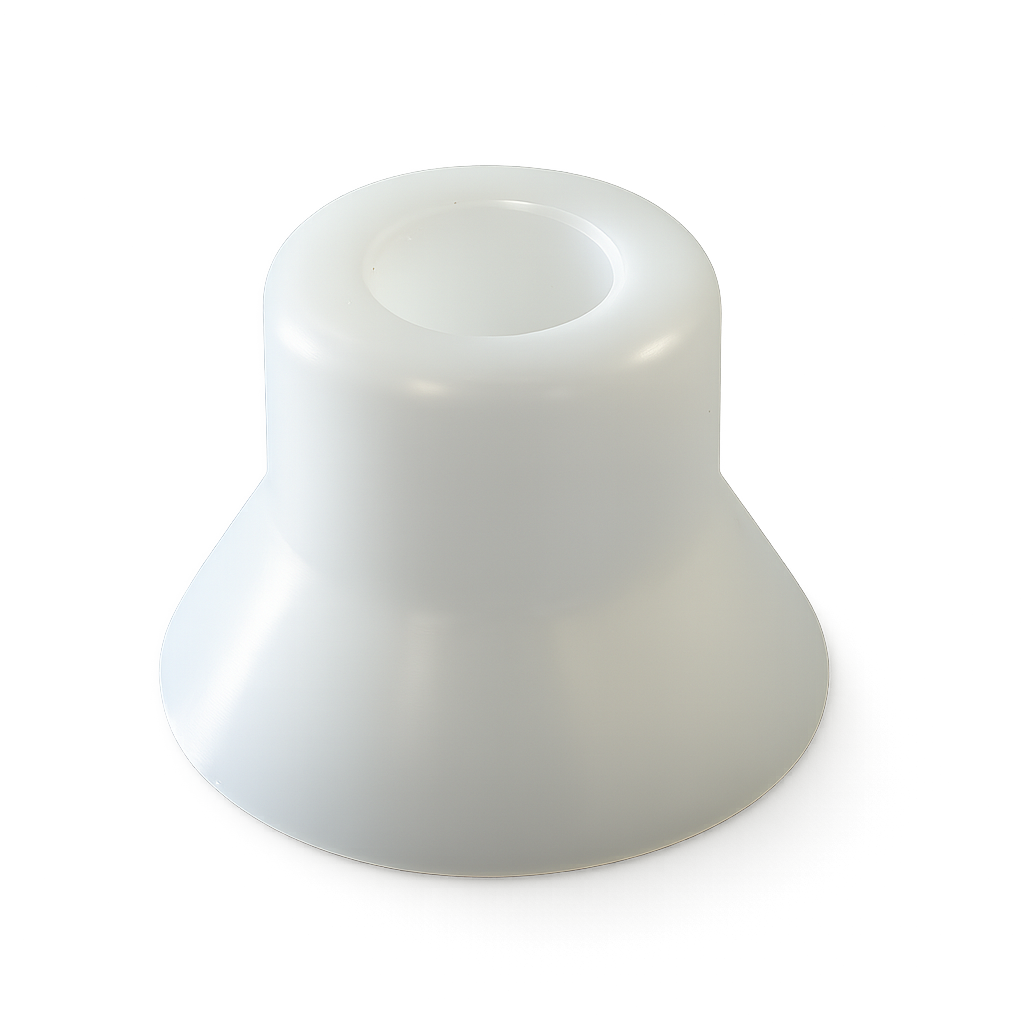

V816FLAT

Resin Infusion
Connector Fitting

Flat Base 1/2″

Flat base connector fitting with a 1/2″ hose barb for secure resin and vacuum line connections.

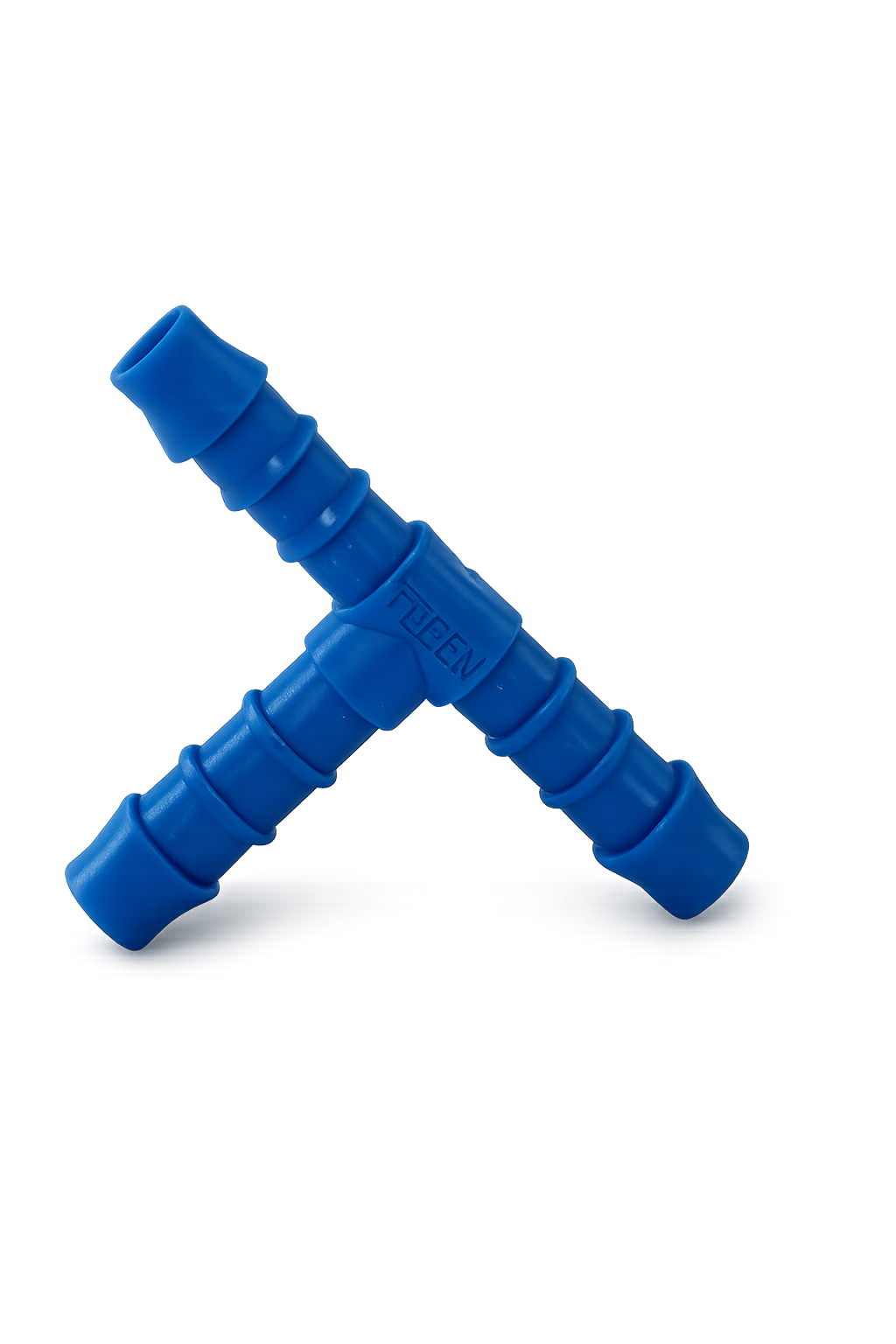

V860

Nylon Barb

T-Joint 8 mm

Nylon barbed T-joint for branching vacuum or resin lines in the infusion system.

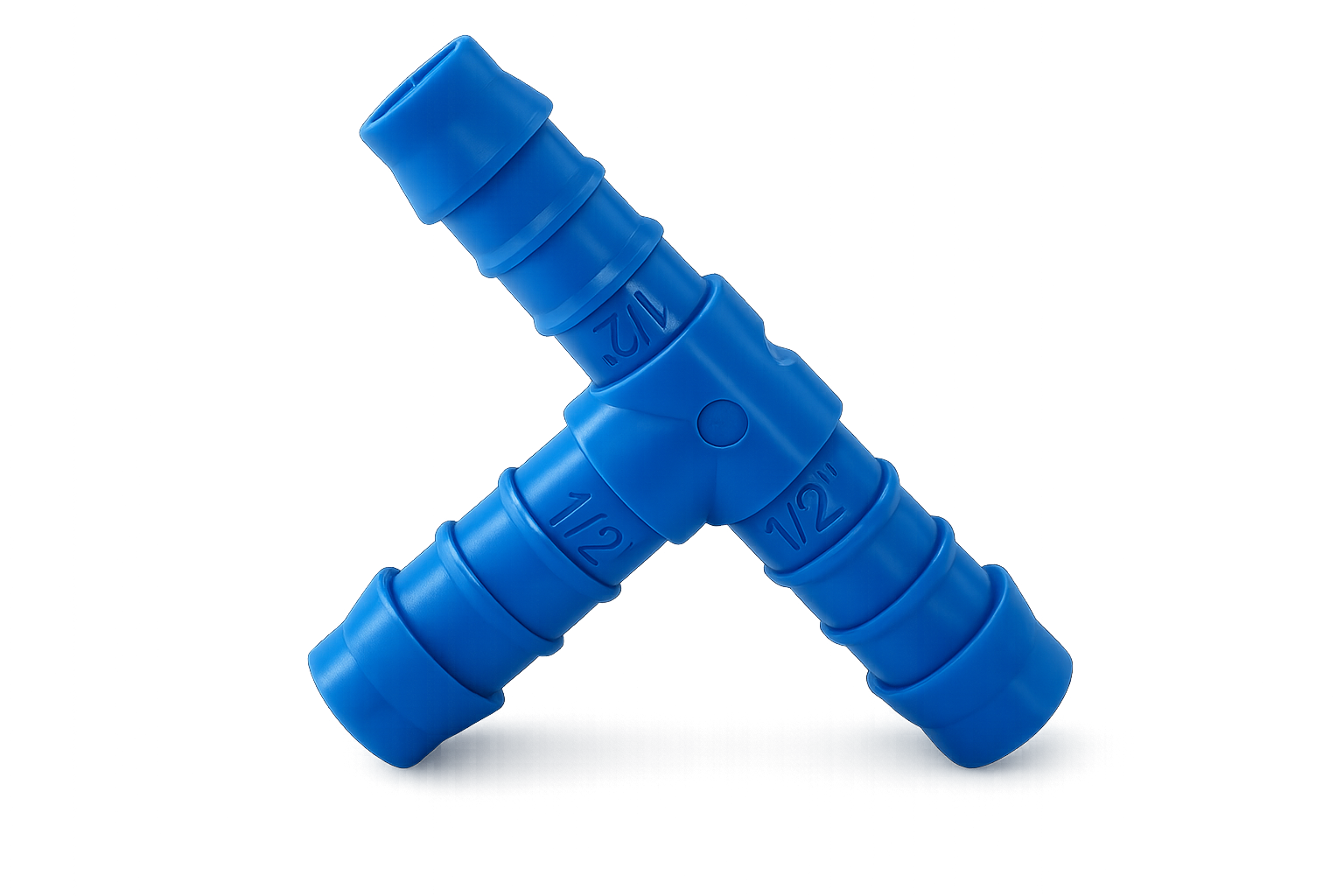

V861

Nylon Barb

T-Joint 12 mm

Nylon barbed T-joint for branching vacuum or resin lines in the infusion system.

Part	Description	Process Temp	Outside Diameter	Fitting Type
V815	Resin Infusion Connector Fitting – Arch Base	80°C	1/2″	Arch Base
V815FLAT	Resin Infusion Connector Fitting – Flat Base	80°C	3/8″	Flat Base
V816	Resin Infusion Connector Fitting – Arch Base	80°C	5/8″	Arch Base
V816FLAT	Resin Infusion Connector Fitting – Flat Base	80°C	1/2″	Flat Base
V860	Nylon Barbed T-Joint	80°C	8 mm	T-Joint
V861	Nylon Barbed T-Joint	80°C	12 mm	T-Joint

AIRTECH - RESIN INFUSION CONNECTOR

AIRTECH -

frequently asked questions

How does ATL tailor composite systems for different industries?

Every industry has distinct performance, compliance, and manufacturing requirements. ATL’s in-house chemists and engineers develop and refine epoxy systems, adhesives, and core materials to meet the specific demands of marine, defence, aerospace, automotive, industrial, civil, architectural, and sporting applications — ensuring every product delivers optimal strength, efficiency, and durability.

Can ATL customise materials for my project or process?

Yes. ATL offers custom formulation and process engineering support to align material performance with your production requirements — whether infusion, hand lay-up, lamination, bonding, or CNC-routed panel construction. Our technical team collaborates closely with customers to deliver precision-matched resin systems and structural solutions for unique applications.

Are ATL’s composite systems certified for high-performance applications?

Absolutely. ATL operates under an ISO 9001:2015-certified quality management system, with selected materials approved by DNV for use in structural and high-load applications. Every ATL system is manufactured to exacting standards of performance, consistency, and traceability to meet the demands of defence, industrial, and advanced engineering environments.

What makes ATL’s materials suitable for large-scale or structural builds?

ATL’s epoxy systems, structural panels, and composite cores are engineered for high strength-to-weight performance, dimensional stability, and fatigue resistance. These attributes make ATL materials ideal for large composite assemblies, modular structures, and precision-engineered components where long-term strength, weight reduction, and reliability are essential.

Does ATL offer sustainable or bio-based composite options?

Yes. ATL is committed to advancing sustainable composite technology, offering USDA-Certified Bio-Based epoxy systems and environmentally conscious materials that reduce waste, extend service life, and minimise environmental impact. Our ongoing R&D focuses on improving sustainability without compromising structural integrity or mechanical performance.

How can I select the right ATL system for my application?

Choosing the ideal composite system depends on your structure’s design, load requirements, manufacturing process, and environmental exposure. ATL’s in-house engineers and chemists provide tailored advice to ensure the correct combination of resin, core, adhesive, and surface technology for your project.
To discuss your application or request technical guidance, contact ATL’s Technical Team — we’ll help you identify the most effective and efficient composite solution for your build.
